    PN40 Cryogenic SS304 Pneumatic Actuated Ball Valve

    Ask Lasest Price
    Brand Name : OEM
    Model Number : OEM
    Certification : CE/ISO
    Price : USD83-USD230
    Payment Terms : T/T
    Supply Ability : 3000pcs per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    PN40 Cryogenic SS304 Pneumatic Actuated Ball Valve

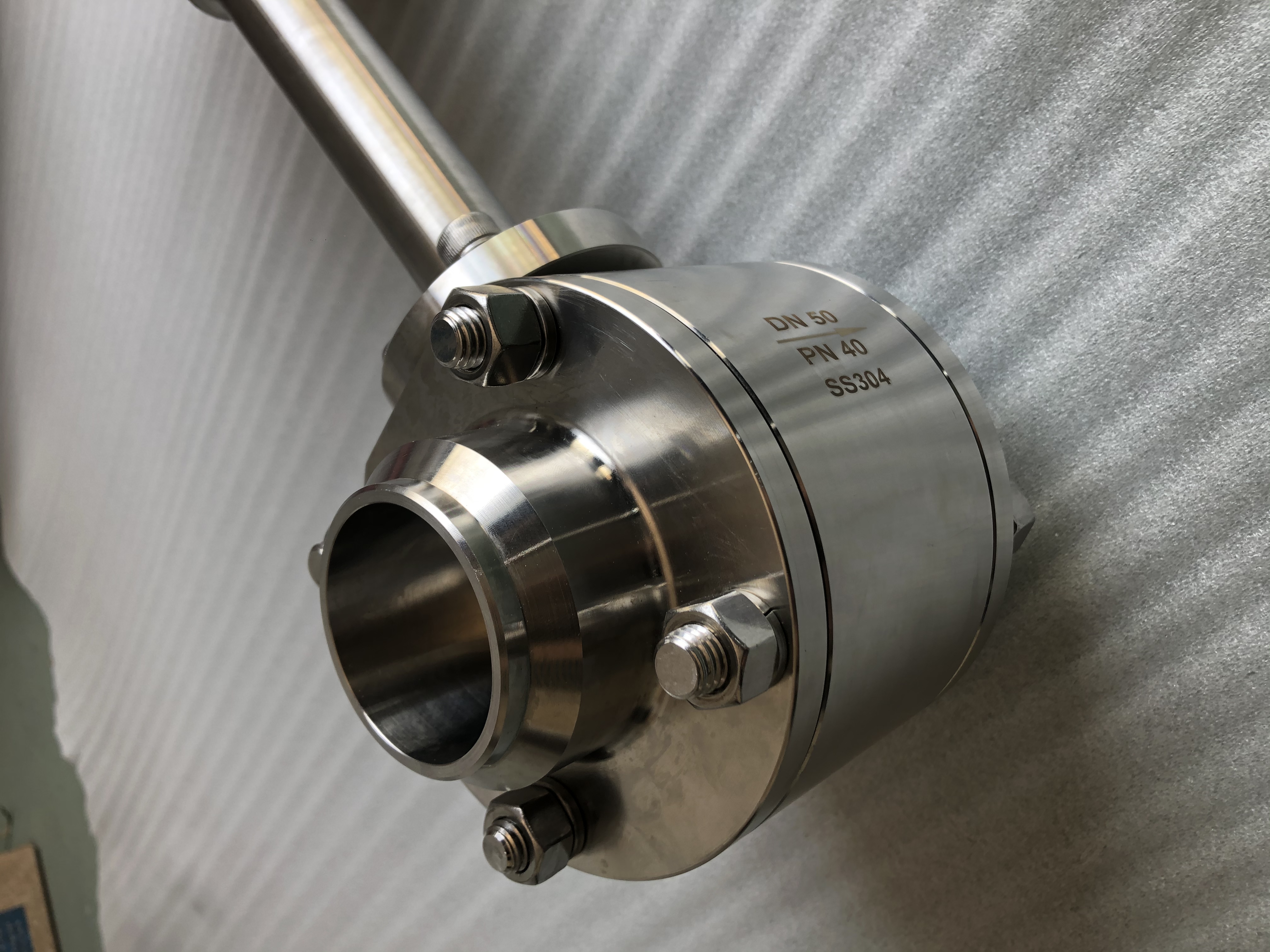

    Cryogenic Welded Type PN40 DN25 to DN200 Ball Valves Pneumatic SS304

    Product Description

    Pneumatic low temperature ball valve refers to a ball valve with a medium temperature of +80 ℃ ~ -196 ℃, which is used for the management system of low temperature and cryogenic medium.The valve undergoes a special low temperature treatment to ensure the low temperature performance of the material. When running in low temperature conditions, it will not cause leakage due to deformation caused by temperature changes. The imported pneumatic low temperature ball valve bonnet adopts a long neck structure. Its purpose is to protect the function of the stuffing box, so that the stuffing box is located far from the low temperature, and the sealing effect of the packing is guaranteed. The neck length of the long neck can be selected according to the use temperature and the thickness of the cold insulation material.

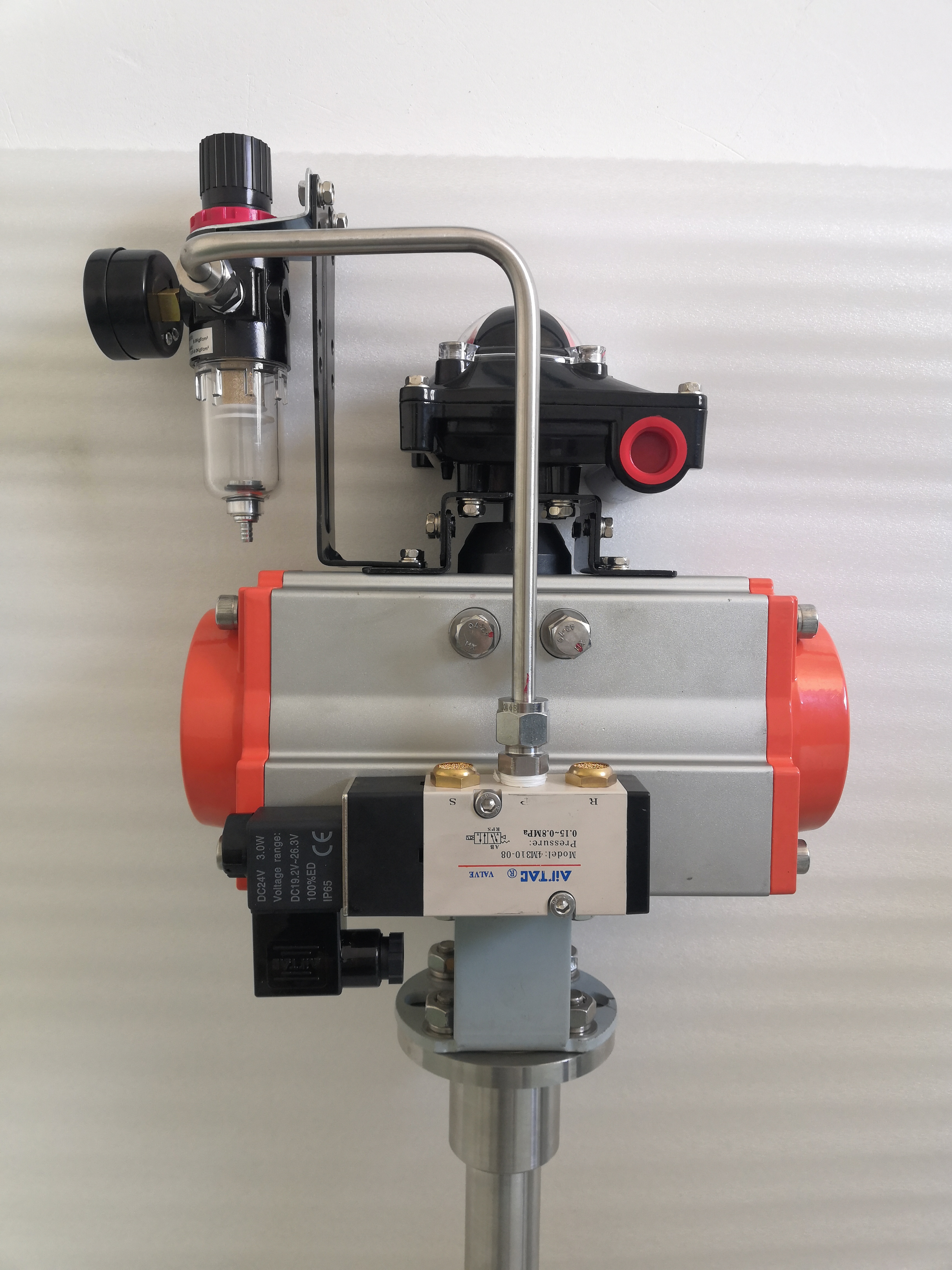

    Actuator modelGT, AT, AR, AW series single and double acting pneumatic actuator
    Supply pressure0.4~0.7MPa
    Air source interfaceG1/4", G1/8", G3/8", G1/2"
    Ambient temperature-196~+80℃
    Form of actionSingle-acting actuators: air-closed (B)-valve position open (FO) when gas is lost; air-opened (K)-valve position closed (FC) when gas is lost
    Double-acting actuators: air-closed (B)-valve position maintenance (FL) when gas is lost; air-opened (K)-valve position maintenance (FL) when gas is lost
    Can be equipped with accessoriesPositioner, solenoid valve, air filter pressure reducer, retention valve, travel switch, valve position transmitter, hand wheel mechanism, etc.

    Nominal diameterDN50 ~ DN100mm
    Nominal pressure1.0, 1.6, 25MPa
    Connection TypeWelded
    structure typeExtension
    Drive formCompressed air 4-7bar
    Range of action
    Spool structure
    Body materialstainless steel
    Sealing materialPEFE, PPL, 304, 316
    Use mediumLiquefied natural gas, liquid nitrogen and other low temperature fluids
    control methodSwitch type (fast two-position cut-off), adjustable type (valve valve device 4-20mA signal)
    Company Information

    Customer Notice

    1. If customers have special requirements for products, they must provide the following instructions in the order contract:
    a. Structure length
    b. Connection Type;
    c. Nominal diameter
    d. Product use medium and temperature and pressure range;
    e. Testing, inspection standards and other requirements.

    2. The factory can configure various driving devices according to customer specific requirements.

    3. If the determined valve type and model are provided by the customer, the customer should correctly explain the meaning and requirements of its model, and sign the contract on the condition that the supply and demand sides understand and agree.

    4. For futures and ordering customers, please call the letter to tell the valve model, specifications, quantity, delivery time and place in detail. And advance payment of 30% of the total contract amount, the supplier is ready for production.


    FAQ

    Q. Are there any special requirements for OEM purchases?
    A. Yes. Liangchuan requires proof of trademark registration in order to print or emboss your trademark onto the product or packaging.

    Q. Do Liangchuan products come with a warranty ?
    A. Yes. That's why we offer 3-year product life guarantee, and a generous1 year warranty on all purchases that begins with the bill of loading.

    Q. How can I get some samples?

    A. Usually we don’t offer free sample and express fee are required, the sample cost can be deducted from your first large order.

    Q. What's the MOQ of your products?

    A. Our MOQ is one (1) piece/set.

    Q. Are you a manufacturer with your own factory?

    A. Yes, we are the manufacturer for more than 8 years
