Product overview
fully-welded-trunnion-mounted-ball-valve

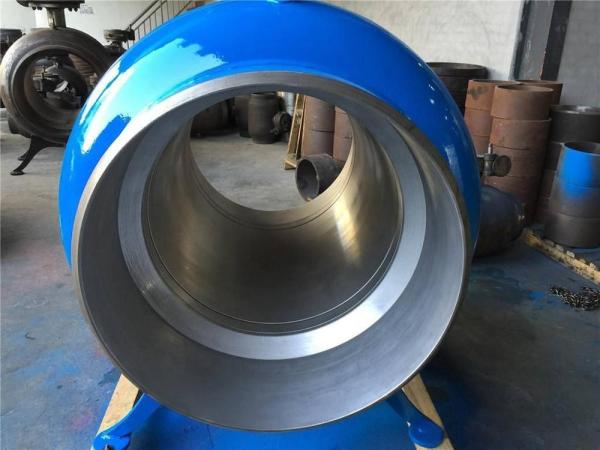

A typical fully welded trunnion mounted ball valve, BW ends, gear
operated, forged steel 3 piece split body.
The fully welded trunnion ball valve has a fully welded body which
eliminates any possible leakage through body joints hence it is
quite suitable for long-distance pipeline transport of oil & gas or
low-emission required toxic media as well as buried/ underground
service. Generally, Metals Valve’s fully welded ball valves are
furnished with butt welding(BW) ends, either soft or metal seated.
Flanged end connections RF or RTJ are available upon request. If
the valve is used for underground service, extended stem and bonnet
will be provided. In order to avoid the heat effect during
installation/ welding, extended welding ends can be furnished and
post weld heat treatment(PWHT) shall be carefully implemented.
Features:
Fully welded ball valve, no external leakage and other phenomena.
The processing of the sphere is tracked and tested by an advanced
computer detector, so the processing accuracy of the sphere is
high.
Because the material of the valve body is the same as the material
of the pipeline, there will be no uneven stress, no deformation due
to earthquakes and vehicles passing through the ground, and the
pipeline is resistant to aging.
The sealing ring body is made of 25% Carbon (carbon) RPTFE
material, which guarantees no leakage (0%).
Directly-buried welded ball valves can be buried directly in the
ground, without the need to build tall and large valve wells, only
small shallow wells need to be set up on the ground, greatly saving
construction costs and engineering time.
According to the construction and design requirements of the
pipeline, the length of the valve body and the height of the valve
stem can be adjusted.
The processing accuracy of the sphere is very precise, the
operation is light, and there is no bad interference.
Using high-grade raw materials, it can keep the pressure above
PN25.
Compared with products of the same specifications in the same
industry, the valve body is small and the appearance is beautiful.
In order to ensure the normal operation and use of the valve, the
service life is more than 20 years.
Customer Notice:
1. If customers have special requirements for products, they must
provide the following instructions in the order contract:
a. Structure length
b. Connection Type;
c. Nominal diameter
d. Product use medium and temperature and pressure range;
e. Testing, inspection standards and other requirements.
2. The factory can configure various driving devices according to
customer specific requirements.
3. If the determined valve type and model are provided by the
customer, the customer should correctly explain the meaning and
requirements of its model, and sign the contract on the condition
that the supply and demand sides understand and agree.
4. For futures and ordering customers, please call the letter to
tell the valve model, specifications, quantity, delivery time and
place in detail. And advance payment of 30% of the total contract
amount, the supplier is ready for production.
