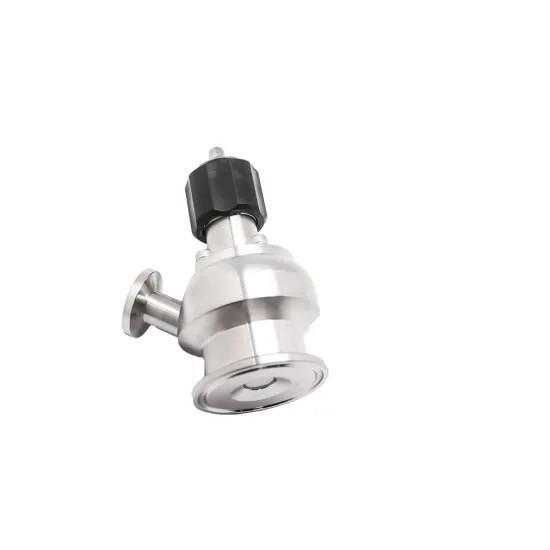

Stainless Steel Aseptic Sampling Valve with Clamping Connection
Sample valves are used in piping systems or on tanks for sampling.
It can also be assembled at the bottom of the tank or pipeline for
residue drain. These aseptic sampling valves are high-quality
products. They can be used for dairy, pharmaceutical, beer,
beverage, edible oil, and other industries to meet their
professional requirements.
Sanitary sample valves and gauges have many advantages such as
removable connection, simple structure, and easy maintenance;
Aseptic sampling valves and gauges are high-quality pieces to
ensure the use of performance and service life;
Our sanitary valves can provide valve body and disc materials such
as AISI 304 or AISI 316L, 304L and 316 materials, automated or
manual operation valve according to your requests.
Specification:
| Valve body | AISI 316L |
| Handle | AISI 304 |
| Menbrane | EPDM PTFE |
| Max. working pressure | 600kPa (6bar) |
| Max. temperature | 130 ºC (EPDM) 150 ºC (PTFE) |
| Connection | thread, pipe welding, tank welding, clamp |
| Handle | turning handle/removable key |
| Application scope | beer, milk, beverage, fruit juice, pharmacy industries etc. |
| Packaging details | standard exporting package |
| Delivery details | usually within 20 days after receiving T/T down payment |
Open:Sampling - The manual valve is opened by rotating the
handle(adjustable valve) or by activating the lever(on/off valve).
The stem and membrane are then retracted, allowing liquid to pass.
Closed:Sterilizing - The built-in spring closes the valve and keeps
the channel open between the hoses though reverse process in order
to sterilize. If using by steam, a small pressure relief
valve(optional) on the outlet is recommended.

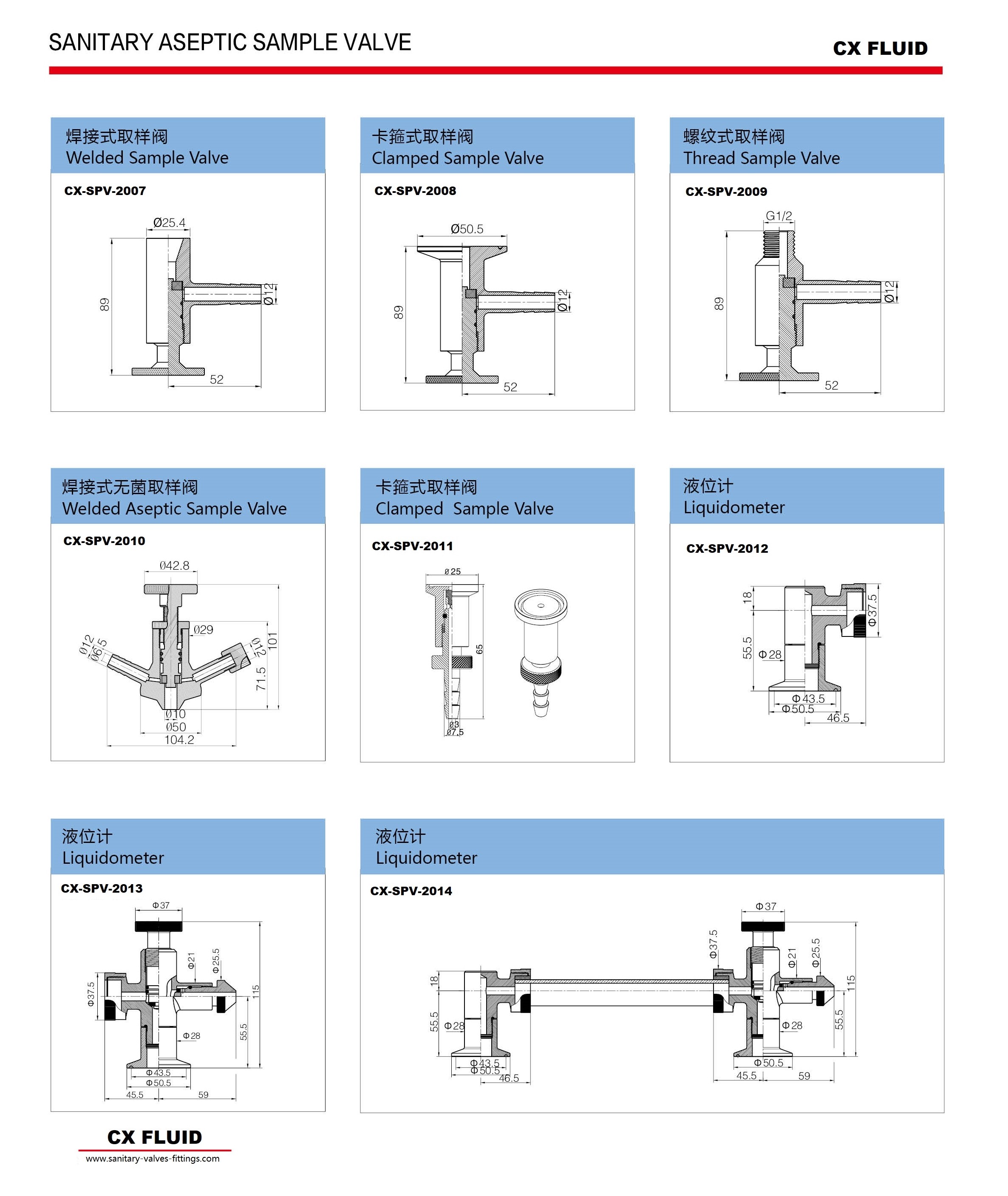

Standard design: the aseptic sampling valve consists of three
parts, a valve body, a handle and a membrane. The rubber membrane
is placed on the stem of the valve and works as a stretchable plug.
Connection:Tread, pipe welding, tank welding, clamp.
Handle: Turning handle/ removeable key
Application: The aseptic sampling valve is applied to beer, milk,
beverage, fruit juice, pharmacy industries etc.
