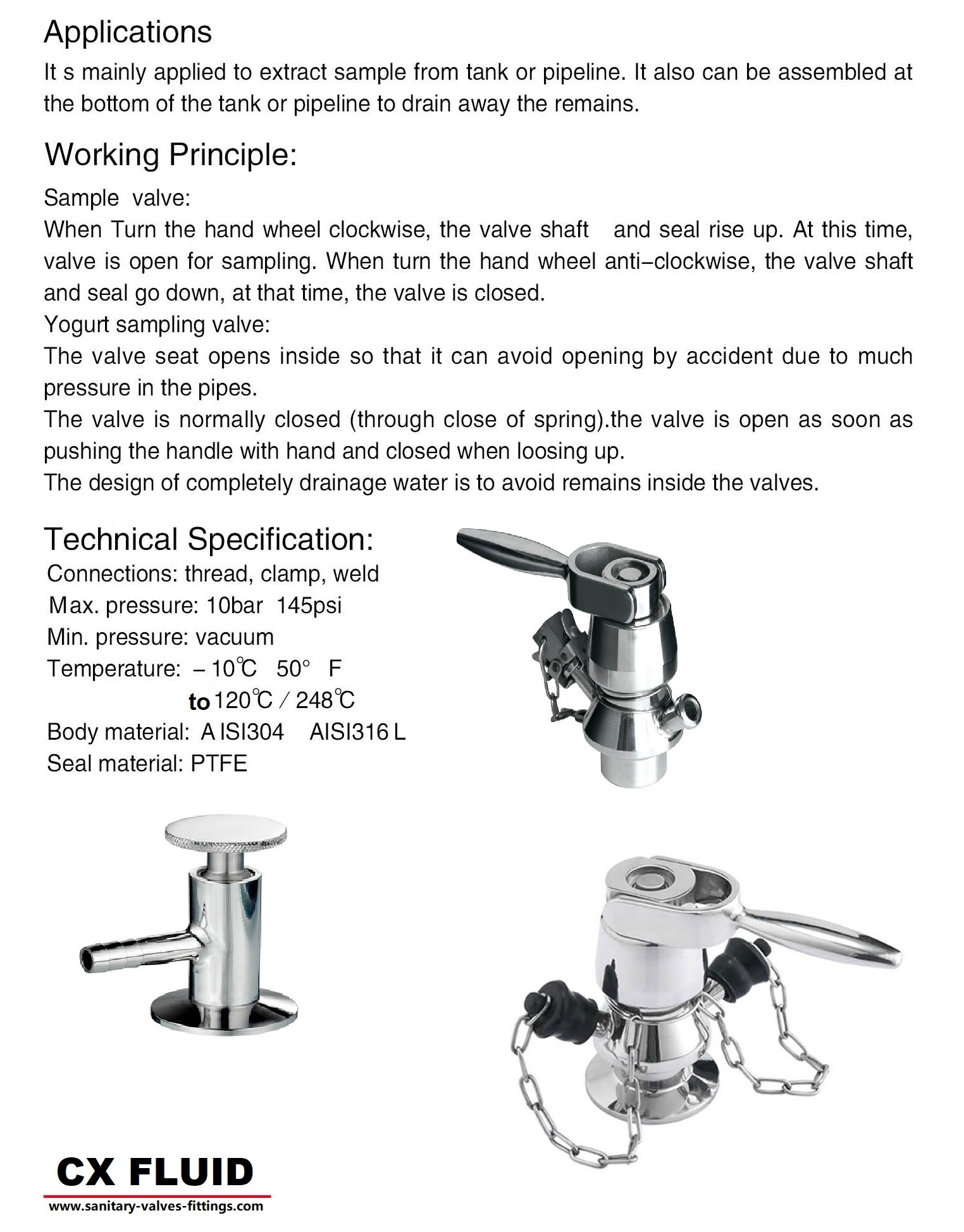

Sampling Valve mainly applied to extract sample from tank or
pipeline, it also can be assembled at the bottom of the tank or
pipeline to drain away the remains. It is apply for the food,
chemical, pharmaceutical, cosmetics and biotechnology industries.
As well as all other sectors requiring sanitary type equipment.
Sanitary sampling valve has two configurations:
1) Sanitary sampling valve adopts PTFE/EPDM seals and is operated
by metal hand wheel. It is cost-effective and easy to operate.
2) Sanitary sampling valve adopts hard-metal seals and can be used
for abrasive product sampling. It is operated by plastic hand
wheel, and both angle and straight type structures are available.
Feature
304 stainless steel
Silicone O-ring plus plunger to assure a leak proof connection
Surface finish polish to sanitary standards
Recommended usage in wineries
End connections available: clamp , NPT or welding
Sizes available: 1" clamp and 3/8" NPT
Technical specification
| Material: | AISI304/ AISI316L |
| Seal material: | PTFE/Silicone, PTFE/FPM (PV-1),PTFE (PV-2)
All seal materials comply with FDA 177.2600 |
| Continuous working temperature: | -20° +135° (EPDM) |
| Working pressure: | 0~10 bar |
| Sterilization temperature: | 150° (Max 20min) |
| Internal surface: | Ra0.8μm |
| Size: | 1/2"--- 1" |
We also supply sanitary butterfly valve, sanitary flow diversion
valve, sanitary CPM valve, sanitary regulating control valve,
sanitary diaphragm valve, sanitary ball valve, sanitary sampling
valve, sanitary safety valve, sanitary pressure reducing
valve,etc...
sanitary elbow, sanitary tee, sanitary reducers, sanitary unions,
sanitary clamp, sanitary ferrule, sanitary pipe clamps,sanitary
cleaning ball, sanitary sight glass, sanitary manway manhole cover,
sanitary strainer, filters, and other sanitary pipe fittings....
We will try our best to give you best price and best quality.
