Manual Type Clamp Ball Valve , Sanitary 3pc Ball Valve
CX Fluid 3PC Tri-Clamped Ball valves series is a manual type
sanitary 3-pc ball valve with tri-clamp / tri-clamp ends and
Encapsulated PTFE seat, which is extensively used in food &
beverage processing, brewing, oil refinery, cosmetic,
pharmaceutical, and chemical industries to control medium flow. The
Encapsulated PTFE seat design with no residue makes it an optimum
choice for sanitary needs, CX Fluid 3PC Tri-Clamped ball valve
operates manually.
CX FLUID 3-piece sanitary ball valve with ISO direct mounting pad
is designed for food biological, pharmaceutics or similar
industries. The cavity filled seat option will help not to remain
the media in the body cavity to keep from spoiling or mixing.
Cavity filler seats will also help to clean the valve port easily.
The options on end types can be T-Clamp, Tube weld end, Extended
tube weld end. Different material of soft kits will be applicable
for different working circumstance.
ASME/ BPE (for SS316L) standard are available on 302SD, with low
ferrite ( 3%), and low sulphur (0.005% to 0.017%). The finish are
available for Ra 40 uin or Ra 25 u-in.
The standard bare stem type is well designed for mounting actuator
directly.
CX FLUID offer pneumatic/ electric actuator and limit switch box/
solenoid valve/ modulating controller....assembling without further
charge.
Features:
- The sanitary three pieces encapsulated ball valve consists of
three detachable parts for easy assembly and disassembly
- Much more convenient to maintain and repair when compared to one
piece and two pieces types
- Durable even under high pressures
- Very low flow resistance due to the smart design of the sanitary
valve
- Special self-cleaning sealing material
- Wide range of size, working pressure, temperature, connection type,
standards, etc.
Advantages:
1.Small fluid resistance, the same length of pipe section have
equal resistance coefficient
2.Simple construction,small volume,light weight.
3.Easy operation,open and close quickly,from fully open to fully
close just need rotate 90° for easy remote control
4.convenient maintenance,ball valve has simple construction,the
sealing is usually moveable,that easy to disassemble and replace.
5.When fully open or fully close,the sealing surface of sphere and
valve seat is isolated from medium,It will not cause the valve
sealing surface erosion when the medium passing.
6.Wide range of application,Sizes range from a few millimeters to a
few meters, from high vacuum to high pressure all can use.
Design Advantages:
1. Three detachable valve body parts as showed in below pictures.
This design brings much more convenience of disassembly any time
compared to common type ball valves

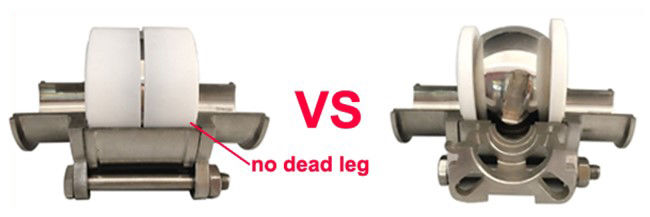

2. The encapsulated bore core structure helps achieve
non-retention, no leakage, no dead leg area. In below picture, the
left one is full port package type, and the right is standard
sealing type.
Our Competitive Advantages:

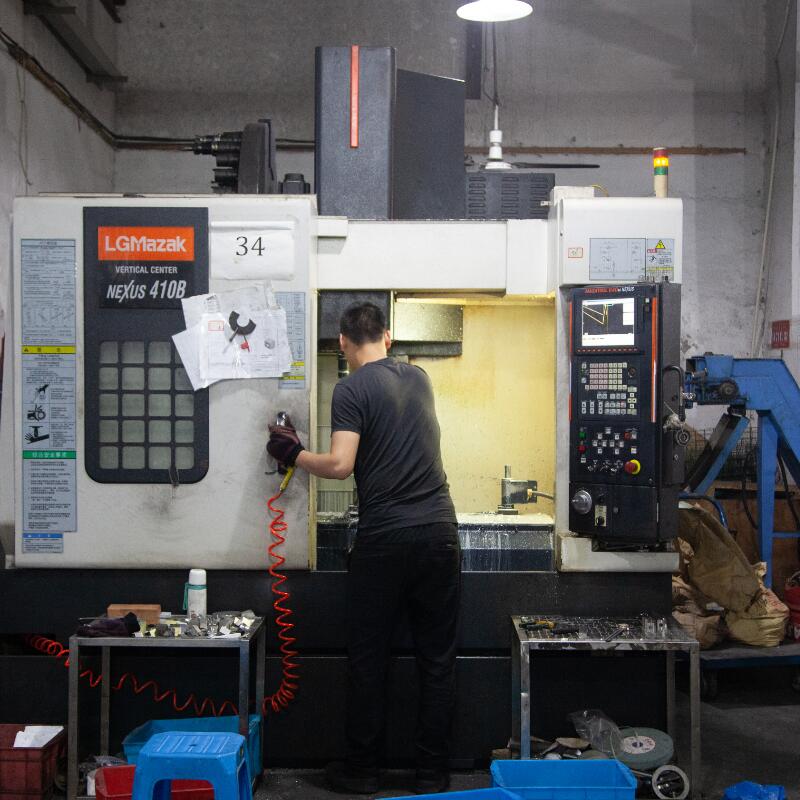

1. We have over 15 years of experience in manufacturing high
quality pipeline valves
2. OEM, ODM welcome, we can produce according to your drawings and
samples
3. Sample order accepted
4. We prepare stock for most standard models to achieve fast
delivery time
5. We provide best quality at a reasonable price
Specifications:
Operated by: Manual handle, or pneumatic actuator
Medium: Water, gas, milk, drinks, pharmacy, chemical fluids,
cosmetics, and so on
Port Size: DN15~DN100, 1/4" ~ 4"
Working Temperature: -10 ~ +150 degress centigrade
Max. W.P.: 8 bar
Max. Pressure withstand: 10 bar
Material: SUS / AISI 304, 316L stainless steel and PTFE sealing
gasket
Connection Ends: Thread, clamp, butt-weld, flange, union
