Stainless Steel Pneumatic 12'' Hygienic Butterfly Valves

Ask Lasest Price
Brand Name :	OEM
Certification :	ISO9001, 3A
Price :	Depends on the quatity of the order.
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	20,000pcs per month
Delivery Time :	1-15 Working Days
Model Number :	OEM
MOQ :	1PC

Add to Cart

Product Details
Company Profile

Stainless Steel Pneumatic 12'' Hygienic Butterfly Valves

Hygienic Pneumatic Sanitary Stainless Steel Butterfly Valve with Actuator

ISO 5211 for Direct Mount, Stainless Steel Body & Disc, PTFE Liner, Stainless Steel Lever Operated up to 4″, 6″ & 8″ Gearbox Operated, Complies with 97/23/CE (PED) Directive CE 1115.

Rated PN16, Temperature -10°C to 130°C.

Note: Gearbox Operation Available, Please Enquire. To fit PN6, PN10, PN16, ANSI 150, Table D and/or Table E Flanges.

Design Features
1.Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2.Available in sizes from DN25 / 1" to DN300 / 12"
3.Multiposition handles can be used for valves up to DN100 / 4";
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5.pneumatic actuator and electric actuator are interchangeable.
6.Seals comply with FDA 21CFR 177. 2600.
7.The valve body can be customized with a wide selection of different connections.

Technical Parameters

Standard	3A,SMS,DIN,ISO,RJT,IDF
Product wetted steel parts	AISI304/AISI316L	Provided with material inspection report
Other steel parts	AISI304
Size	3/4"~6",DN20~DN150,19mm~152.4mm
Seal material	EPDM/VMQ/FPM	All seals material comply with FDA21CFR117.2600
Working pressure	≤10bar(145psi)
Supply pressure for air actuator	5~8(0~116psi)
Working temperature	EPDM:-14~248ºF(-10~120ºC)
	VMQ:-58~356ºF(-50~180ºC)
	FPM:22~446ºF(-30~230ºC)
	Other materials are avaible upon request
Sterilization temperature	302ºF(150ºC,max 20min)
Outside surface treatment	Ra16~32uin(o.4~0.8um)
Inside surface treatment	Ra32~64uin(o.8~1.6um)
Connetion ends	butt-weld,clamped ends,male ends, flange ends
Pneumatic head	Normally closed(NC)-Air to open,spring to close
	Normally open(NO)-Air to close,spring to open
	Air to air(AA)-Air to open,air to close

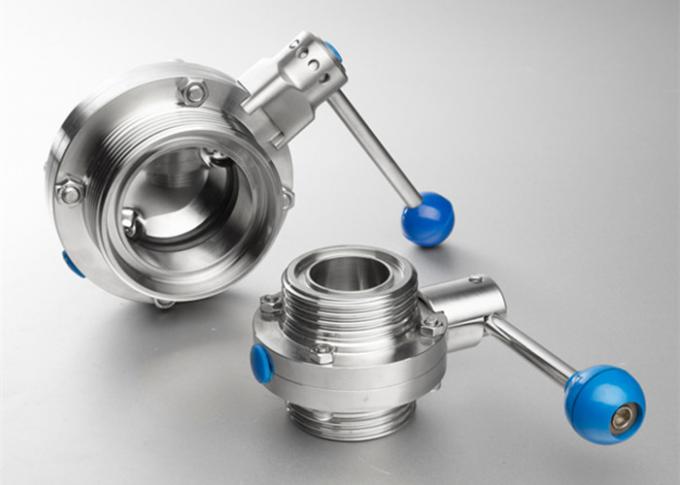

Sanitary stainless steel 316L tri-clampe hygienic butterfly valves with Ss Gripper Handle

Safety Hygienic Valves , Sanitary Stainless Steel Butterfly Valves With 580 Psi Maximum Pressure

Options

1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5.Control: position sensor, C-top controller, C-top controller (AS-I)

2 Inch Hygienic Butt Weld Butterfly Valve High Corrosion Resistant Easily Welded
